7002 Series 132″ Mechanics Body

Call for price

Quote #JO-9084-23-3

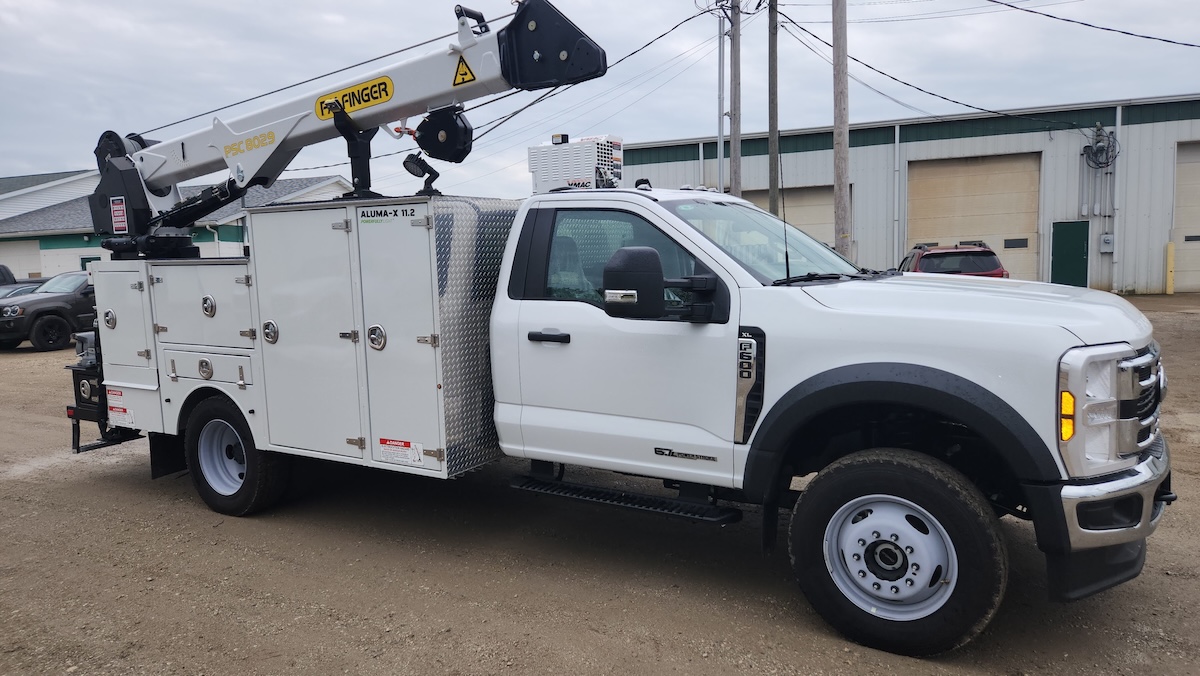

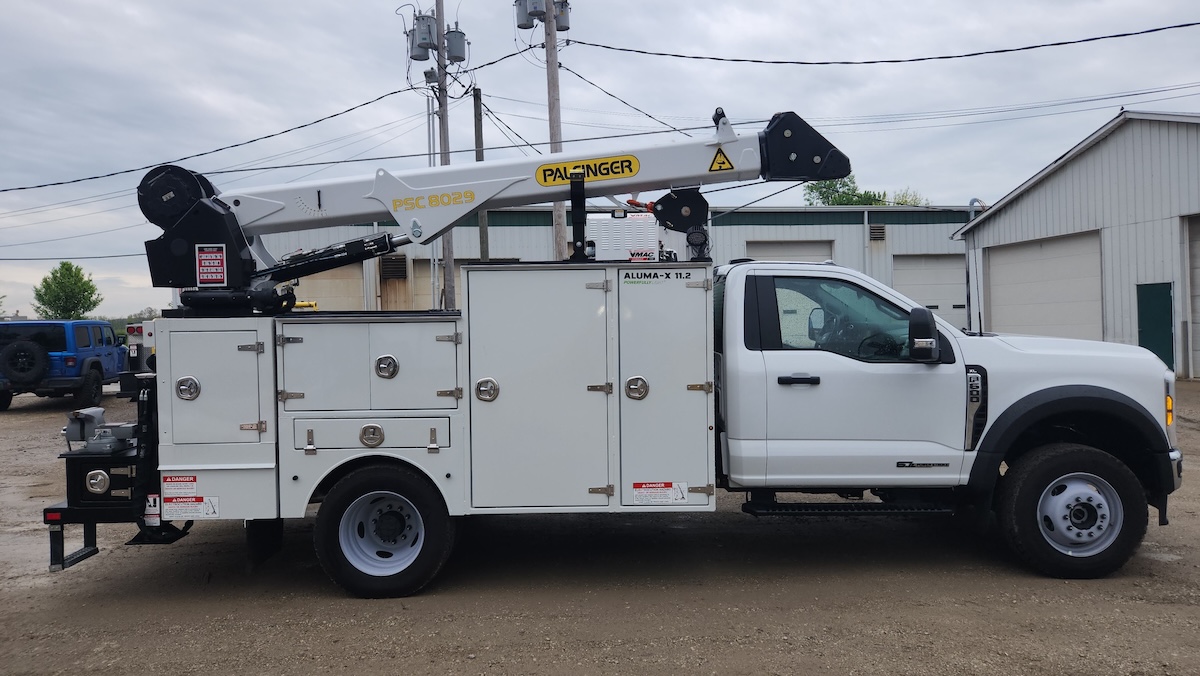

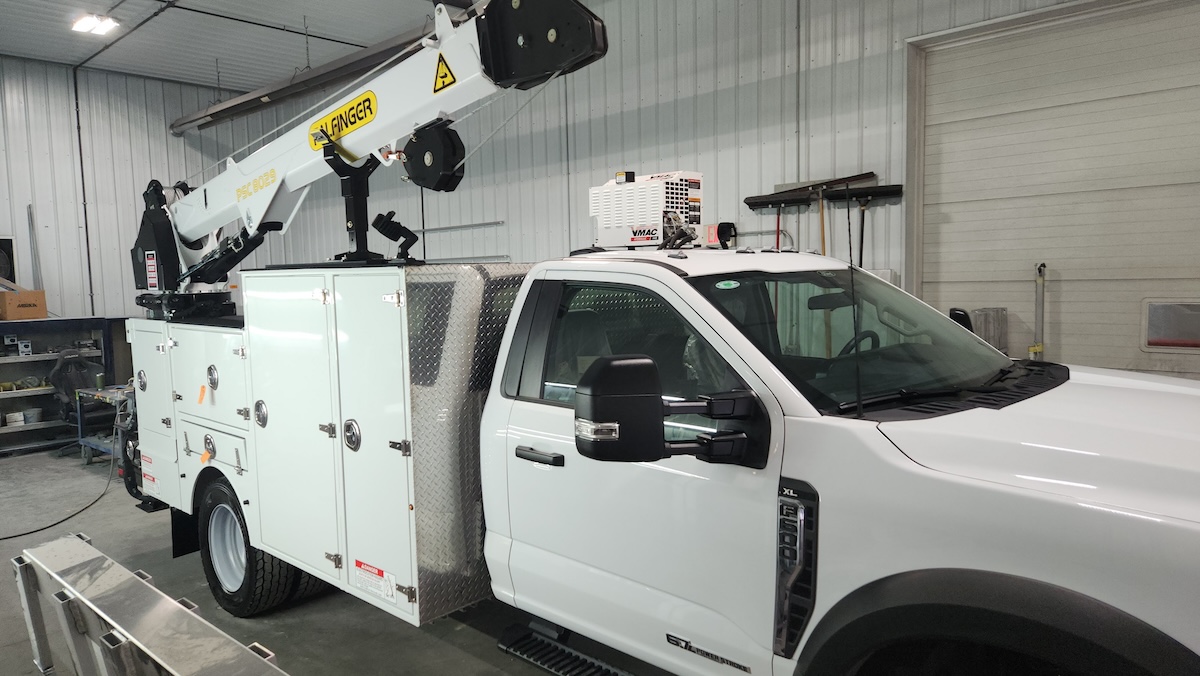

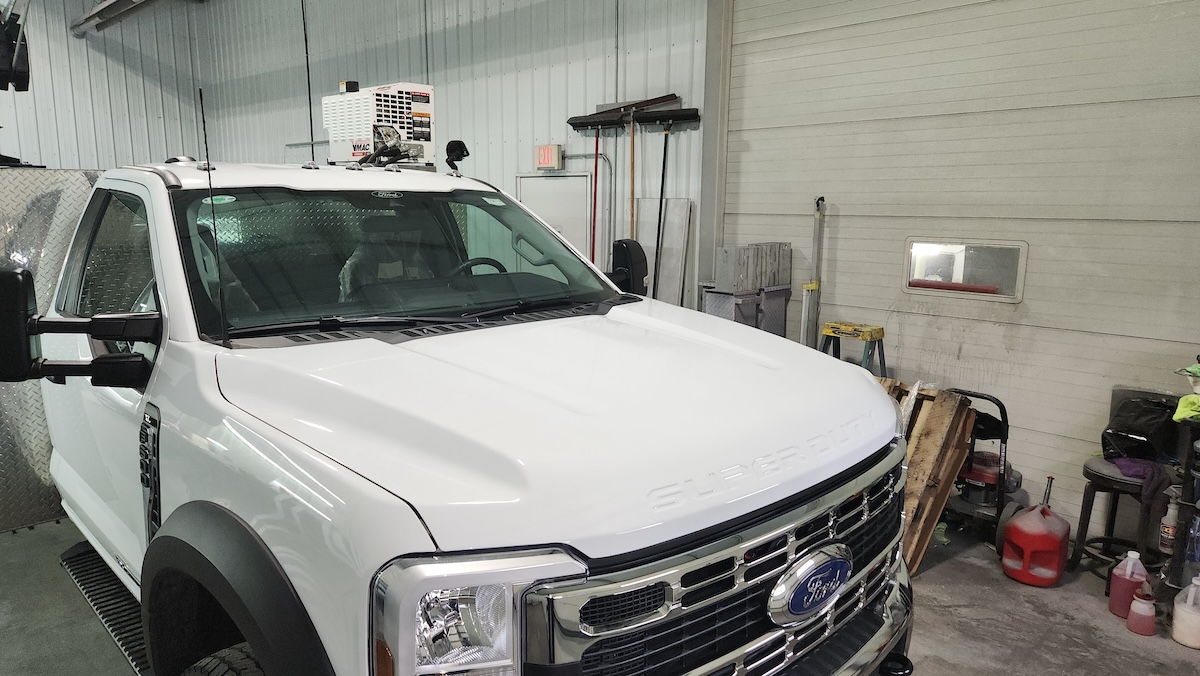

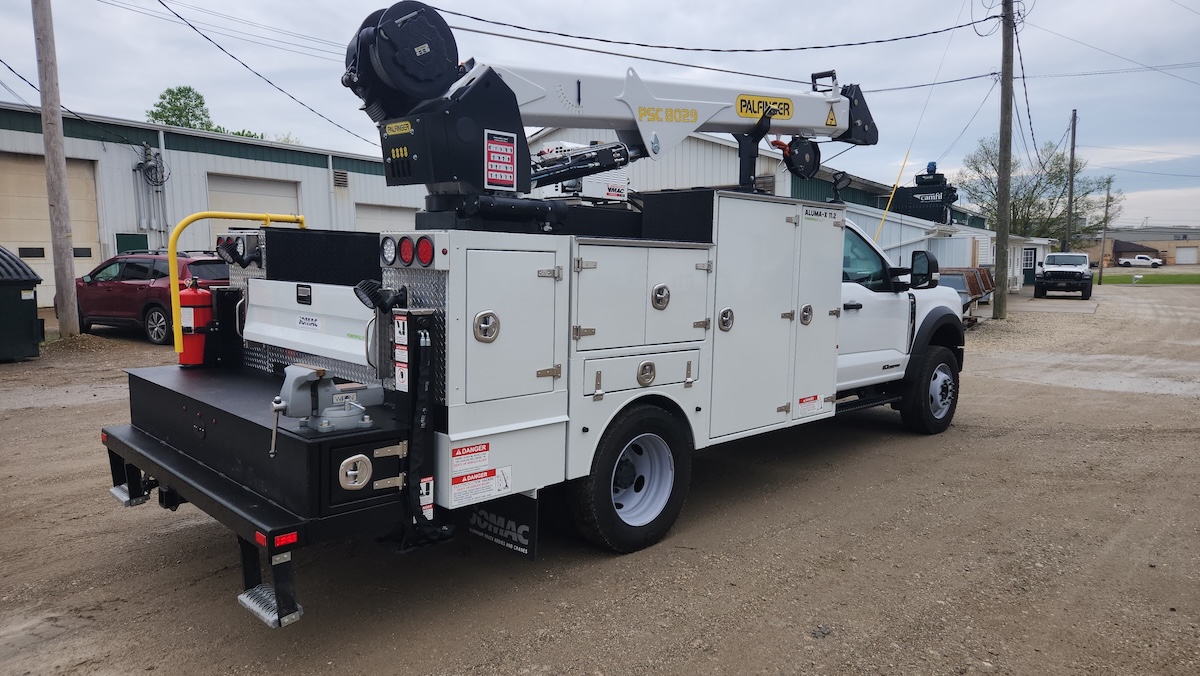

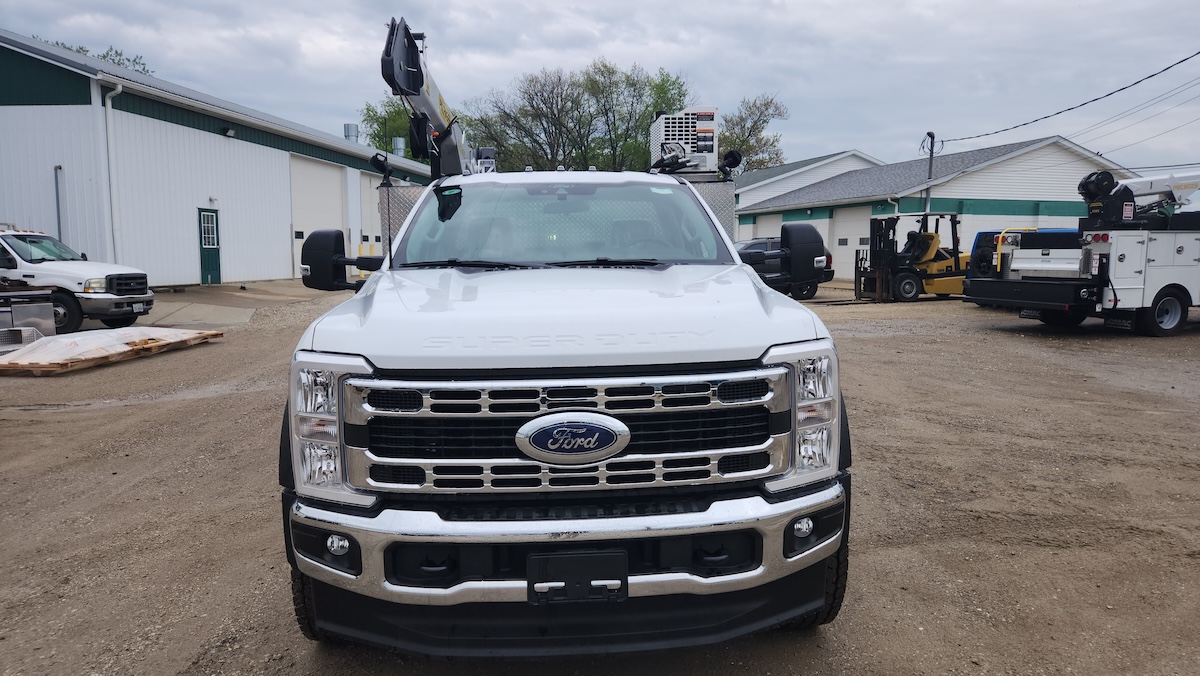

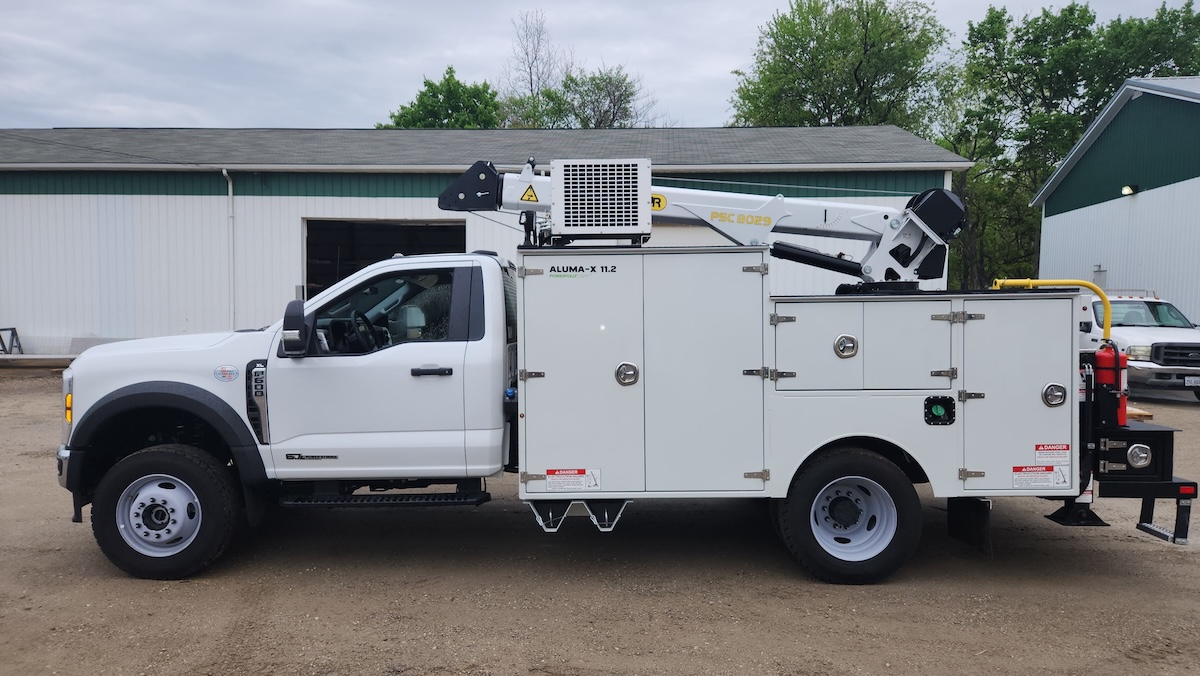

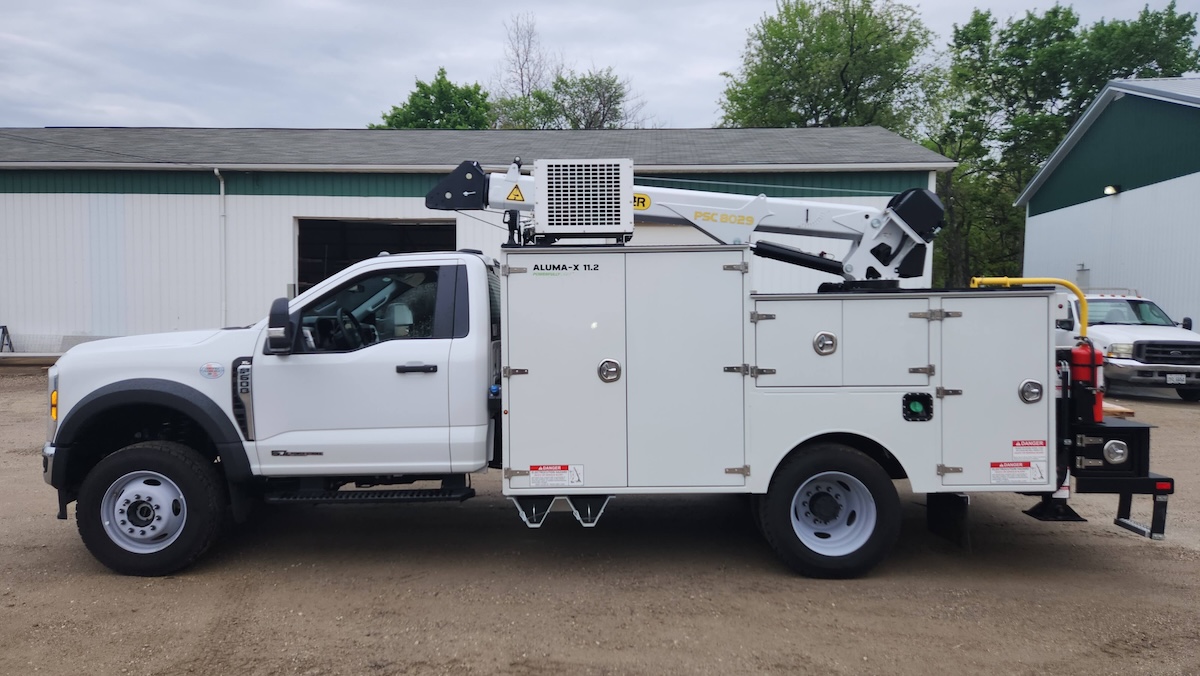

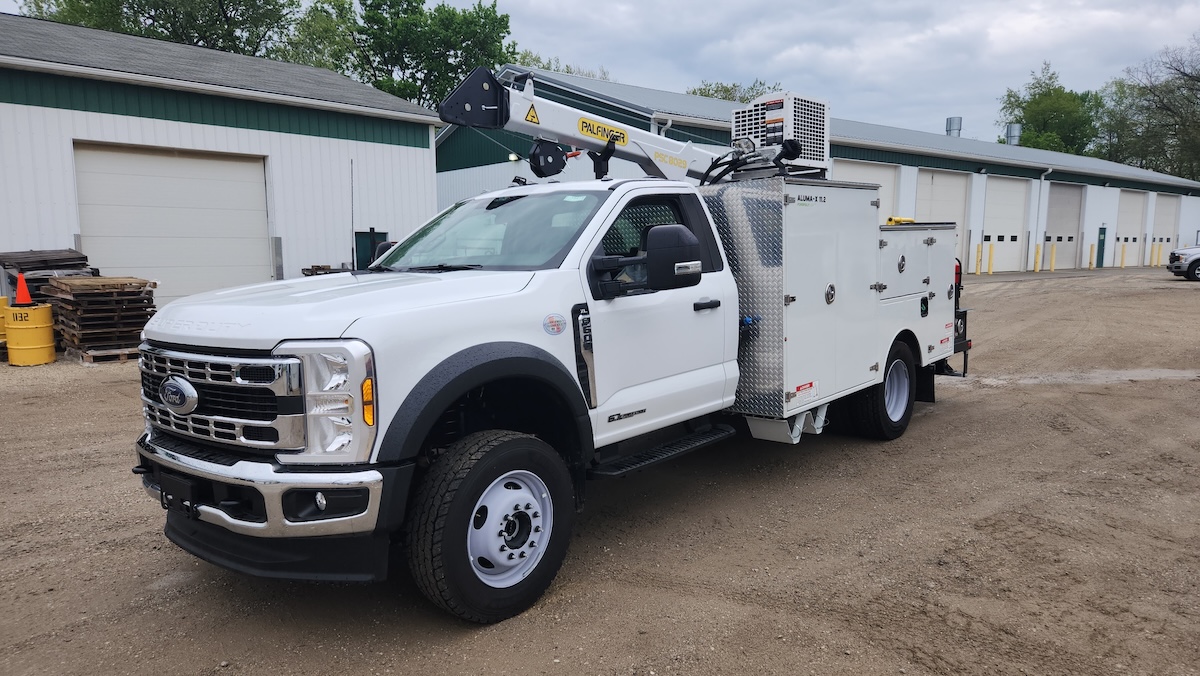

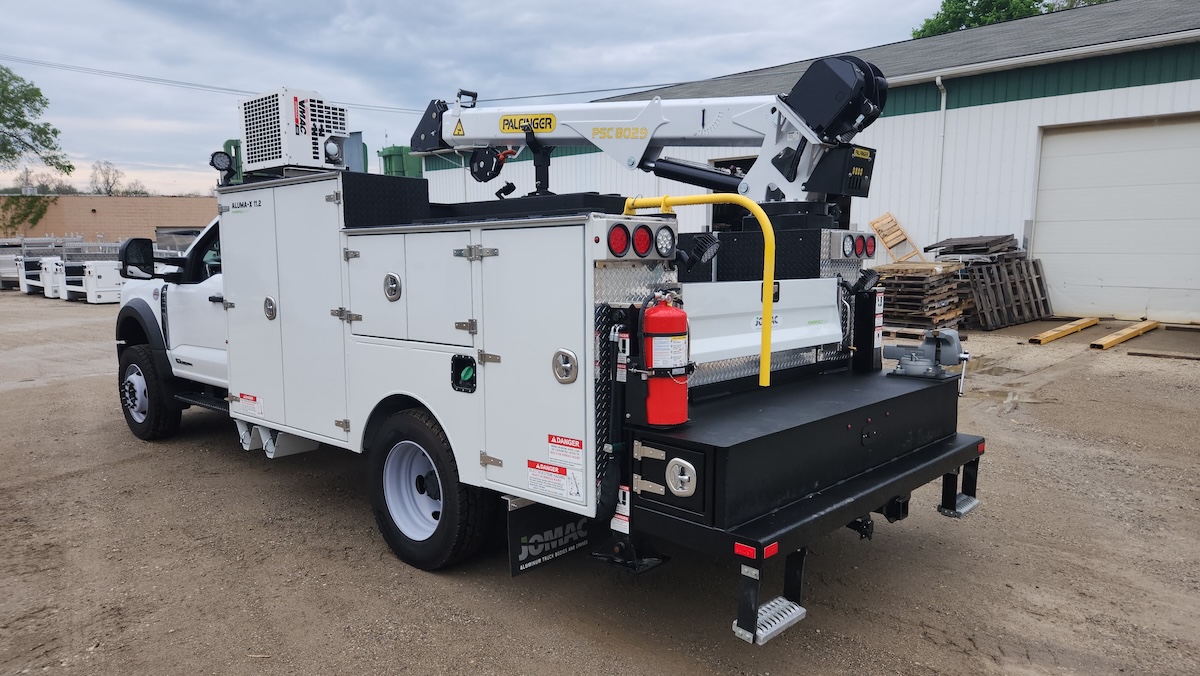

2025 Ford F-600 4×4 equipped with JOMAC’s 7002 Series 132″ Mechanics Body
Lifetime return to factory structure warranty.

Chassis Options

Exterior: Oxford White / Interior: Medium Slate Gray, XL Trim
AM/FM Stereo/MP3
245/70R19.5G Traction 6 tires
4.30 limited slip ratio
Engine block heater
120V/400W outlet
Trailer brake controller
Snow plow prep package
350 AMP alternator, dual battery
XL chrome package
Rear view camera and prep kit

About

Year

2025

Make

Ford

Model

F-600

Engine

6.7L Power Stroke Diesel

Fuel Type

Diesel

Transmission

10-speed Auto Torqshift

Wheelbase

Designed for 84″ CA DRW chassis per body spec

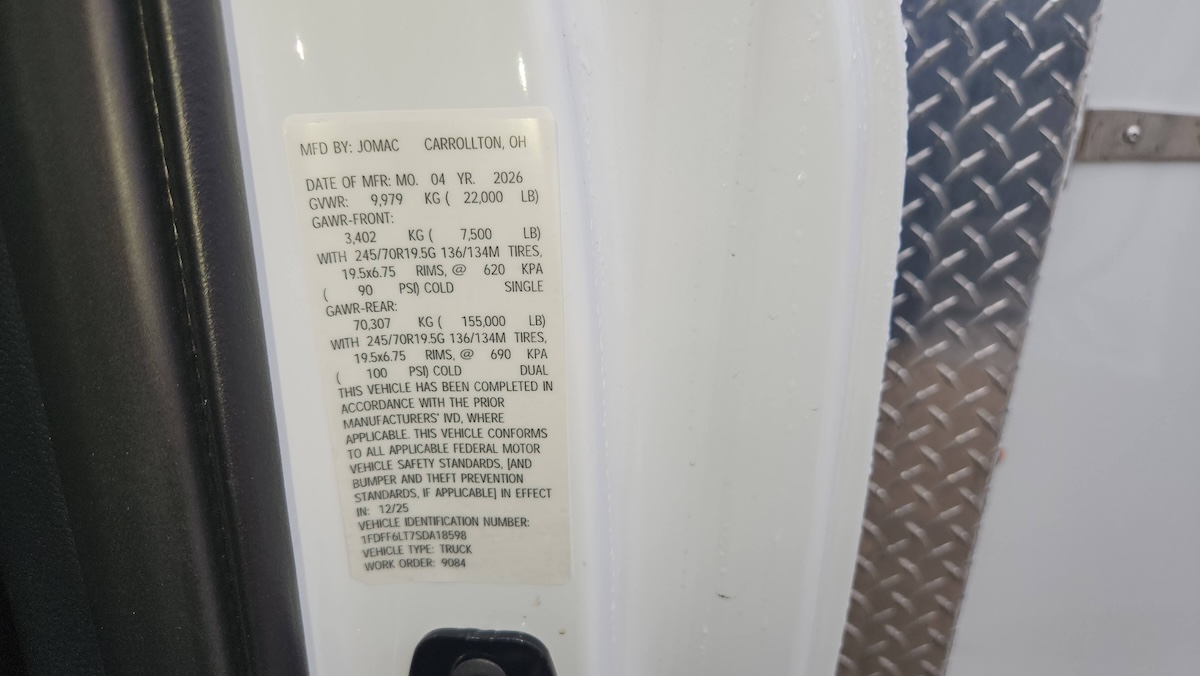

GWVR

22,000 lbs

Fuel Capacity

40 gal, Aft of Axle

BODY

TYPE

7002 Series Mechanics Body with 60″ Front Cabinets

Dimensions

96″W x 60″H x 132″L (96″W x 71″H x 166″L with workbench)

Material

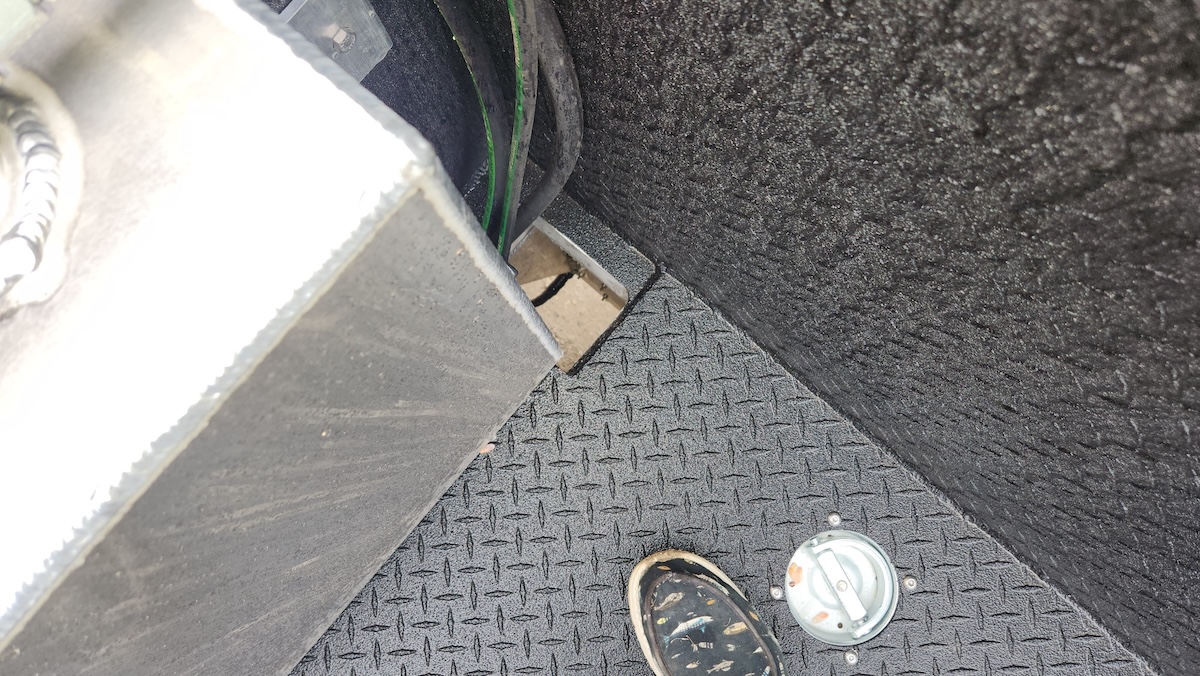

6061-T6 aluminum sub-frame, 1/8″ cabinet shell, 13-gauge doors, 3/16″ tread plate floor

Rated for

Cranes up to 62,000 ft-lb; designed for 84″ CA DRW chassis, 34″–38″ frame height; 51.5″ between cabinets

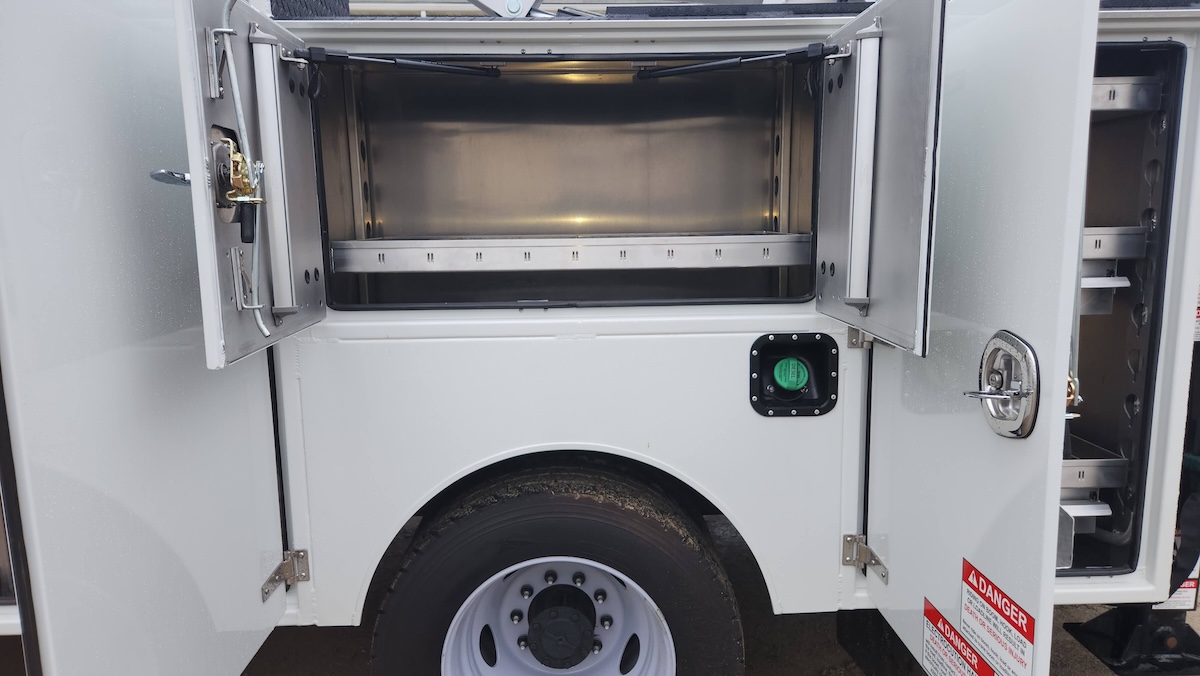

Cabinets

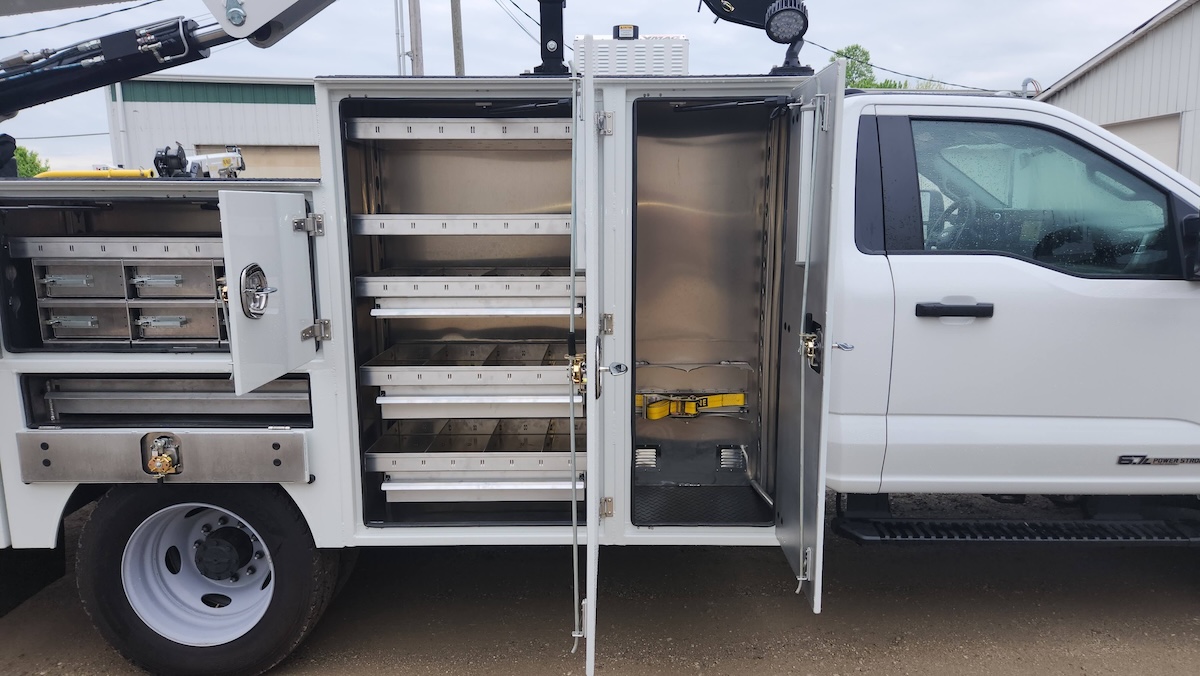

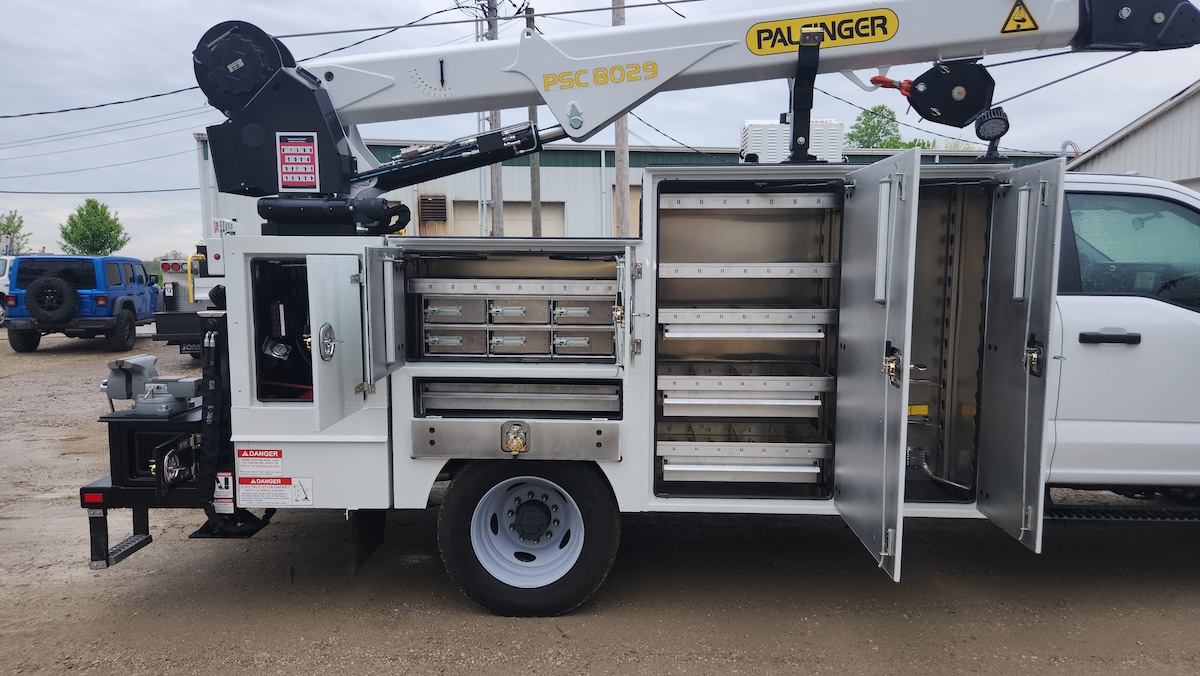

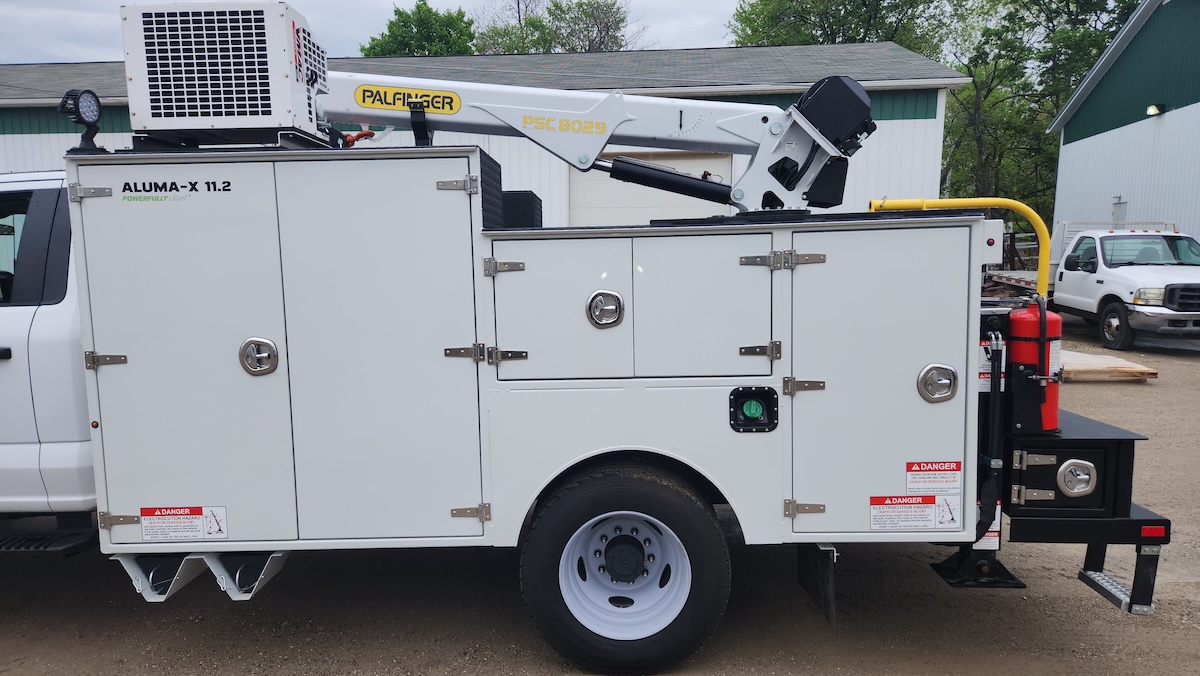

Street Side Cabinets

60″W x 60″H x 22″D, split doors
44″W x 24″H x 22″D, split doors
28″W x 48″H x 22″D

Curb Side Cabinets

60″W x 60″H x 22″D, split doors
44″W x 24″H x 22″D, split doors
28″W x 30″H x 22″D (crane riser cabinet)

Key Features

Two adjustable shelves in each vertical cabinet (except crane cabinet)
One adjustable shelf in horizontal cabinet
8 galvanized recessed D-rings in floor
Aluminum wheel well skirts with flare
10″ double panel removable tailgate
LED lighting with marker lights
Full-length drip rail, whale’s tail latches, 3-point latches with wear pads

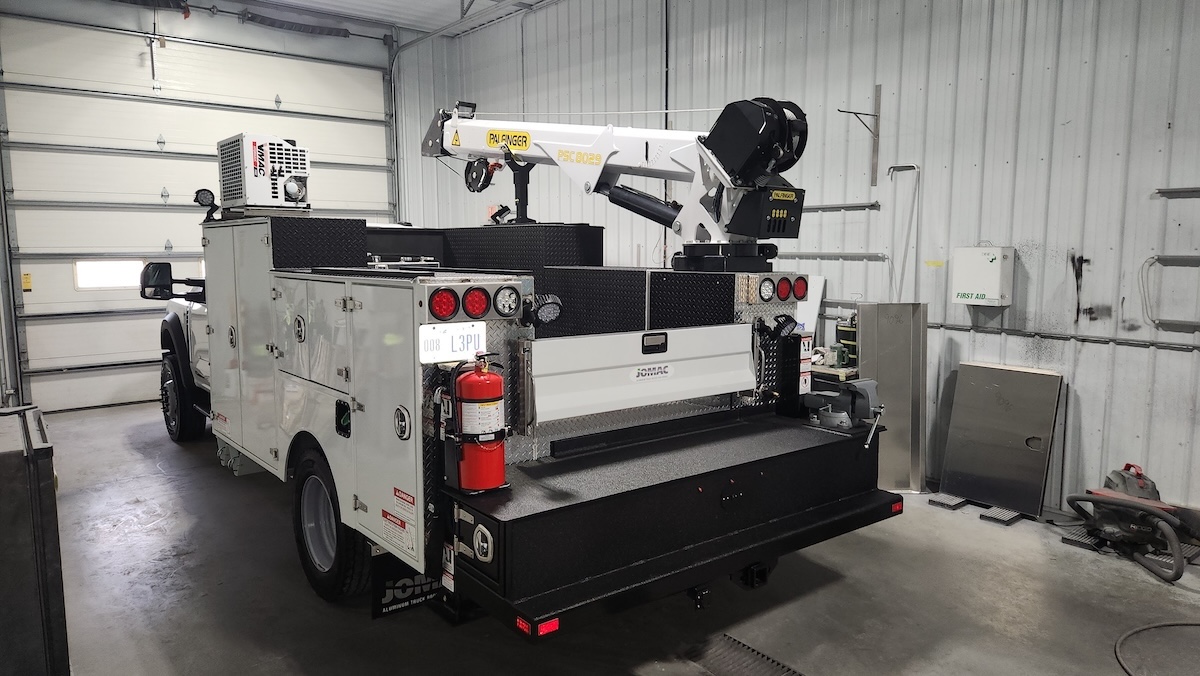

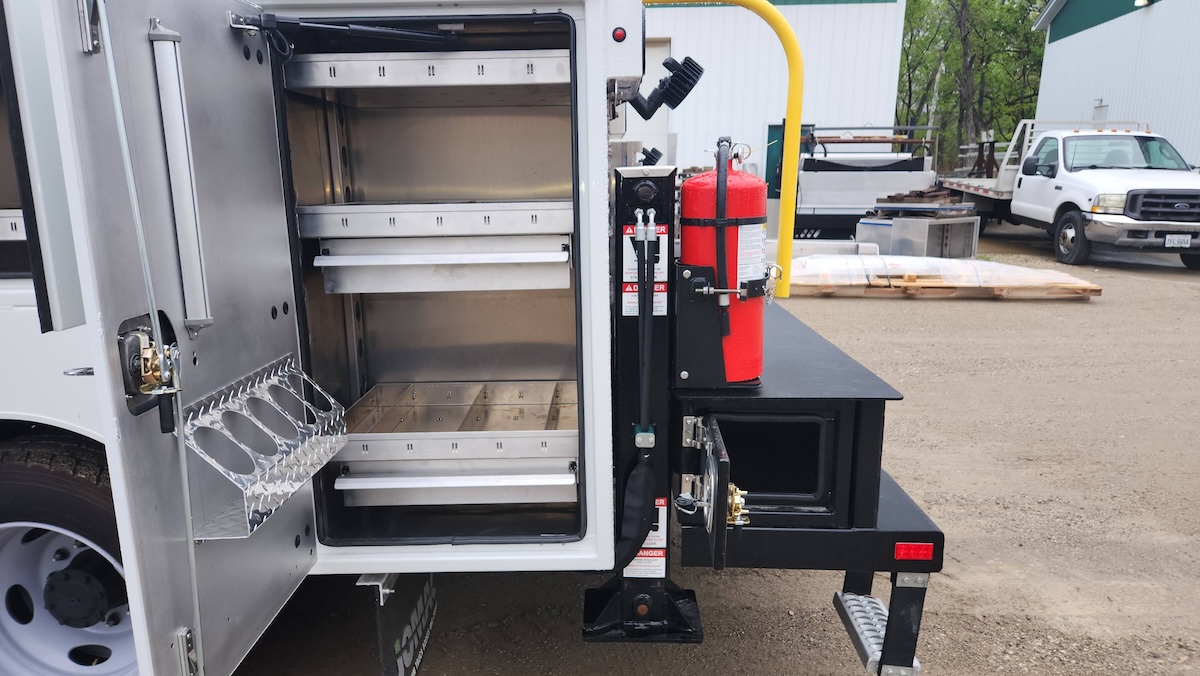

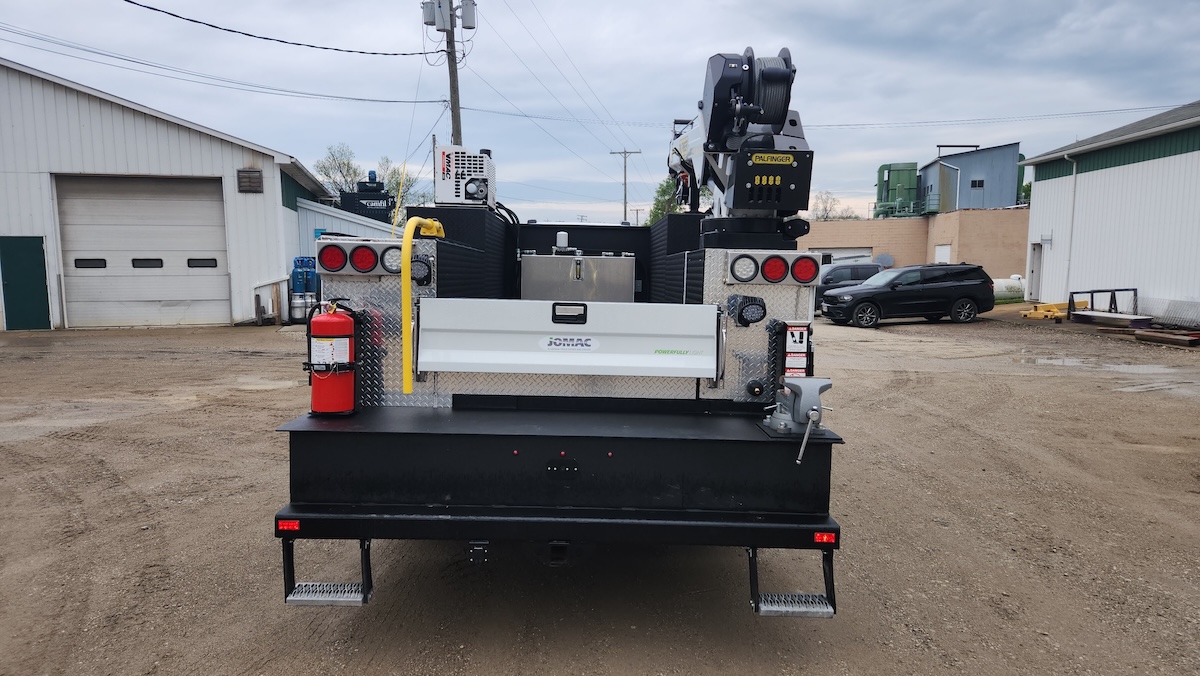

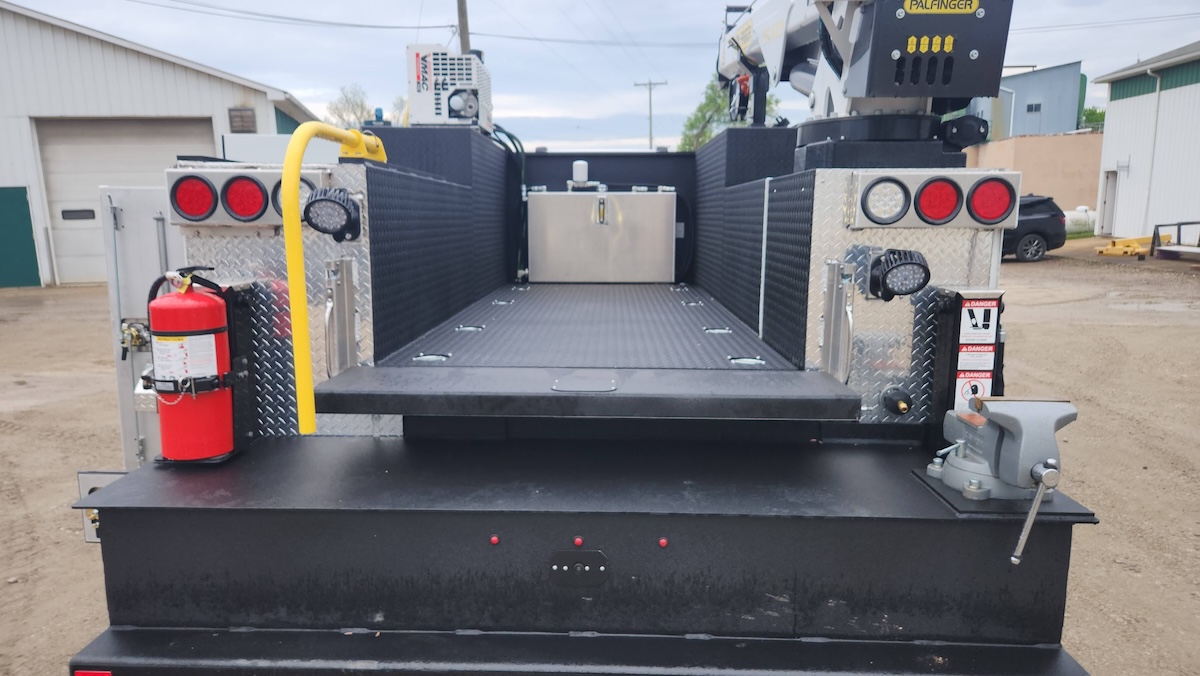

Work Bench

24″D x 96″W, box tube frame, 1/4″ steel plate top
- Thru-cabinet: 12″H x 15″W x 91″L, automotive ball seal, stainless latches/hinges
- 5/8″ thick hitch mount plate

Safety & Compliance

Full-length steel sub-structure; crane rest mounted on top of curbside cabinets
DOT certified by engineer, compliant with National Highway Traffic Safety Administration
Lifetime return-to-factory structural warranty

Finish / Structure

Floor coating, anti-slip black, Sherwin Williams (177 sq ft)
Paint, service body outside perimeter, up to 11′, Jomac white
SuperSpring SSA17.5, Class 5 Ford chassis (one side), factory-installed suspension stabilizer

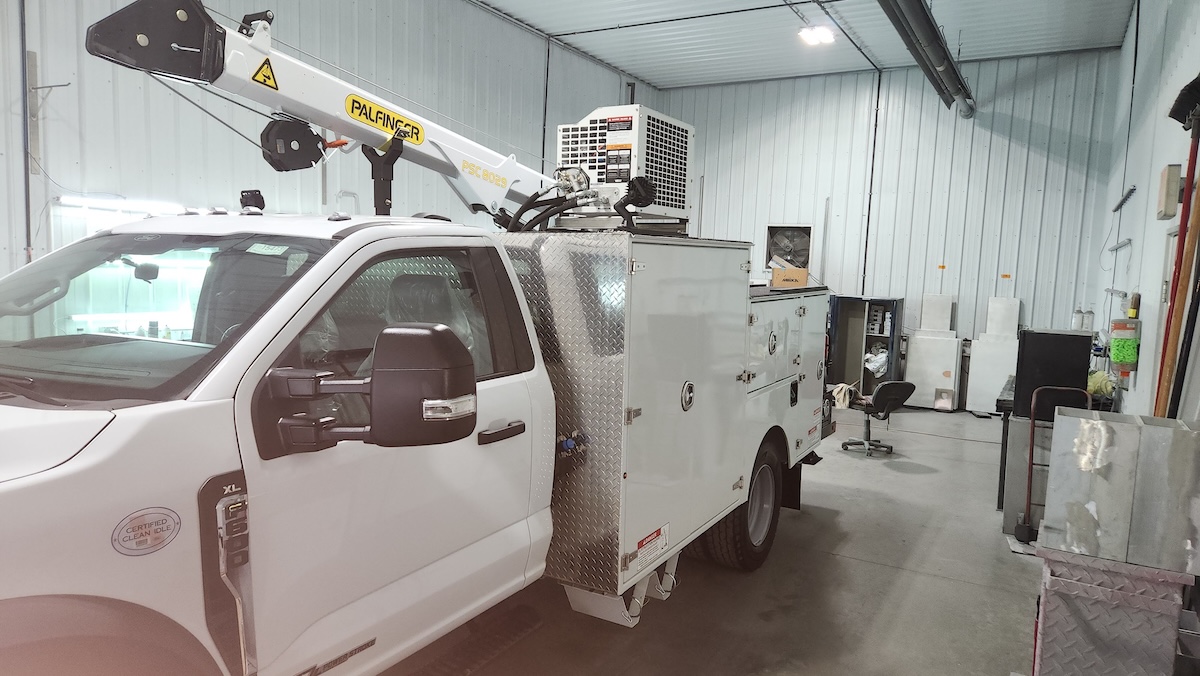

Telescopic crane installation

Crane

Type

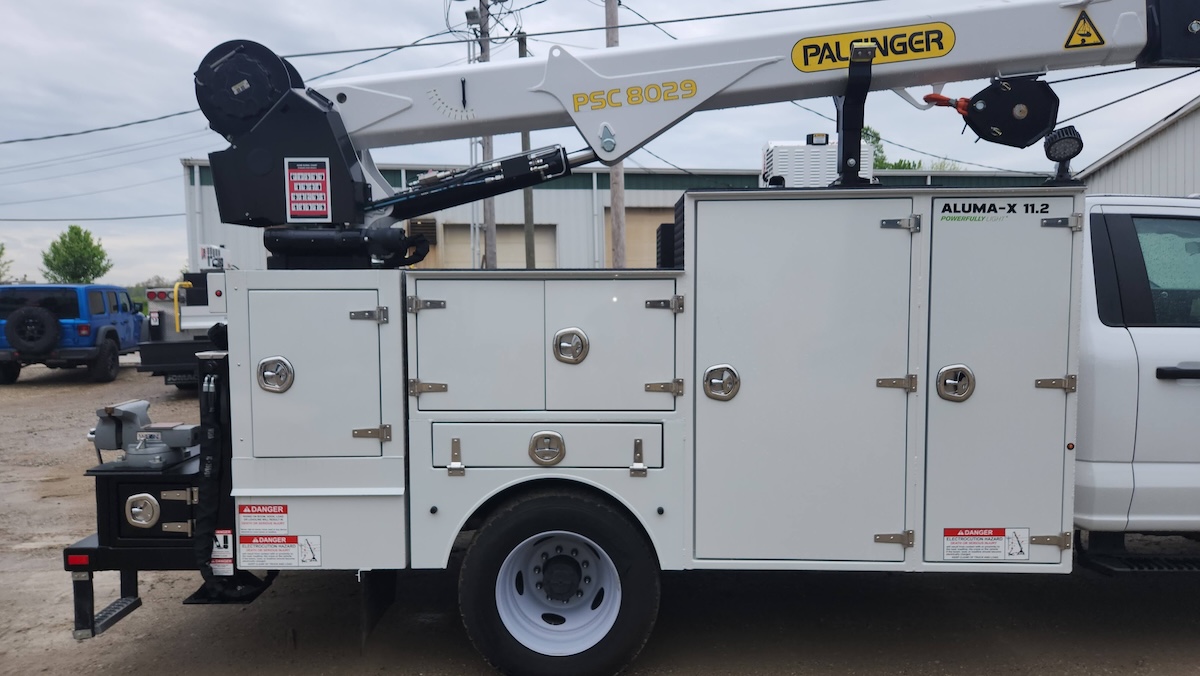

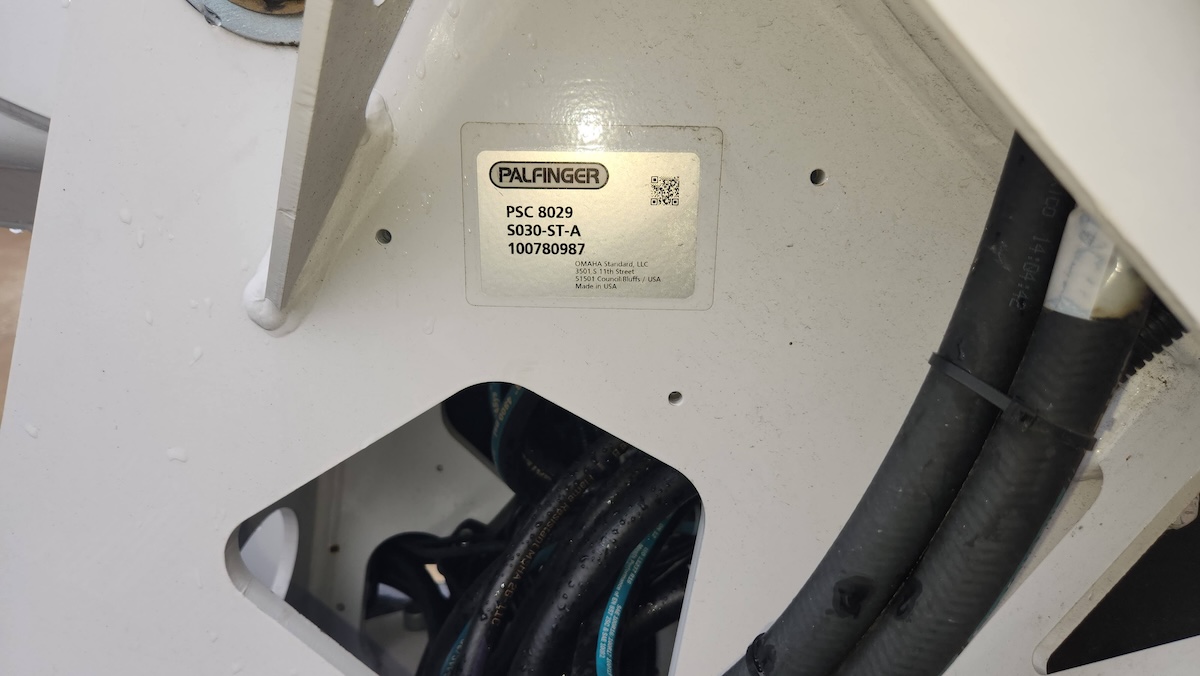

Palfinger PSC 8029 telescopic mechanic field service crane

Capacity

43,000 ft-lbs rating; 8,000 lb vertical lift capacity

Reach

29 ft hydraulic reach

Controls

Wireless remote, pistol grip

Safety Features

400° rotation
-10° to +80° boom elevation
Double acting cylinders with integrated load holding valves on all cylinders
Four-spool remote control valve
Overload shutdown system
Hydraulic planetary drive winch with spring loaded roller
End layering limit switch and integral two-block damage prevention system
Crane hook, load line block, white and black finish paint, crane tie-down bolt kit

Outriggers

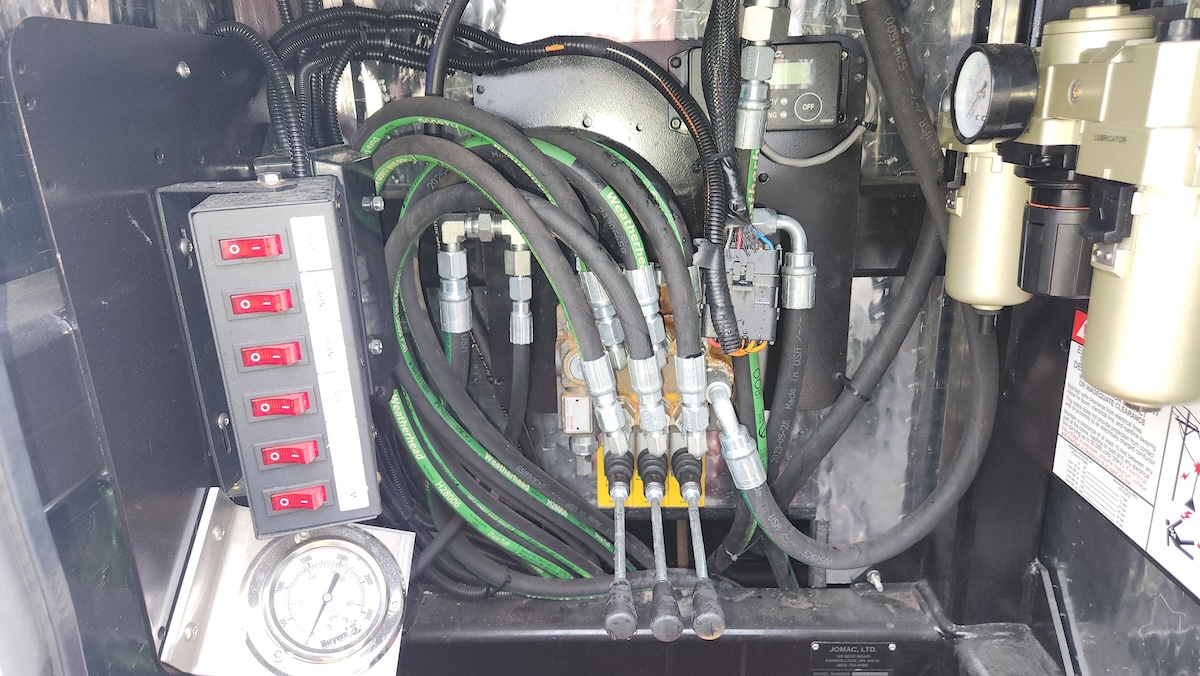

Hydraulic out crane-side, hydraulic down both sides; 3-section control valve (installed)

Power

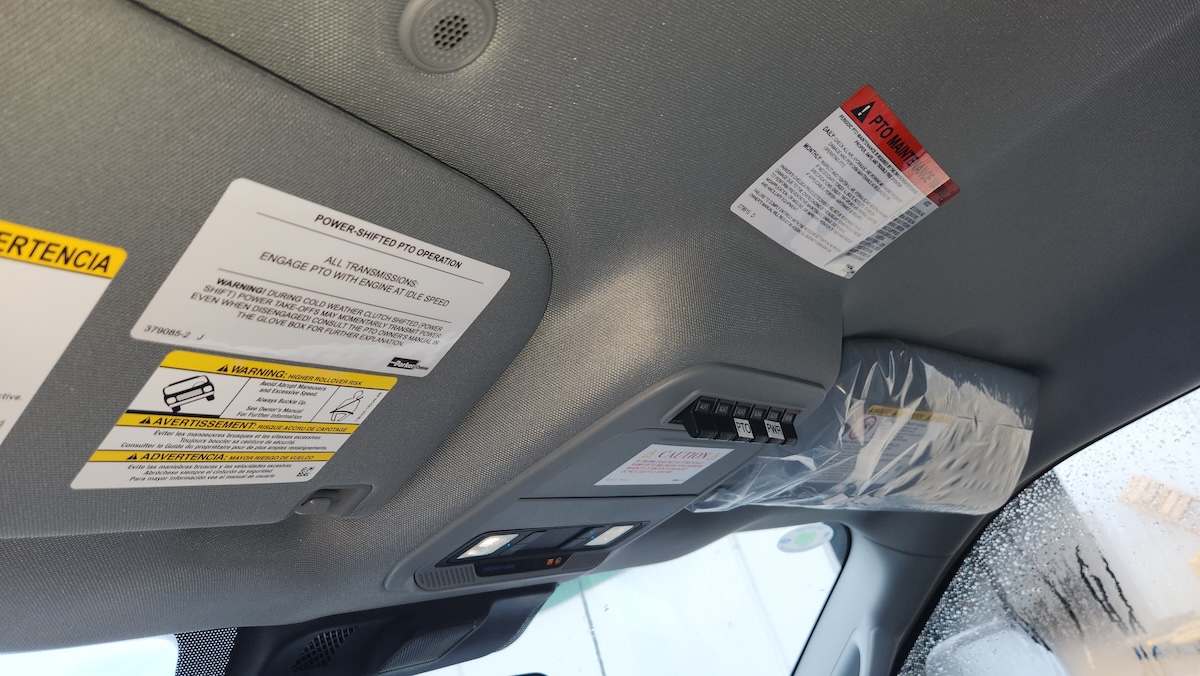

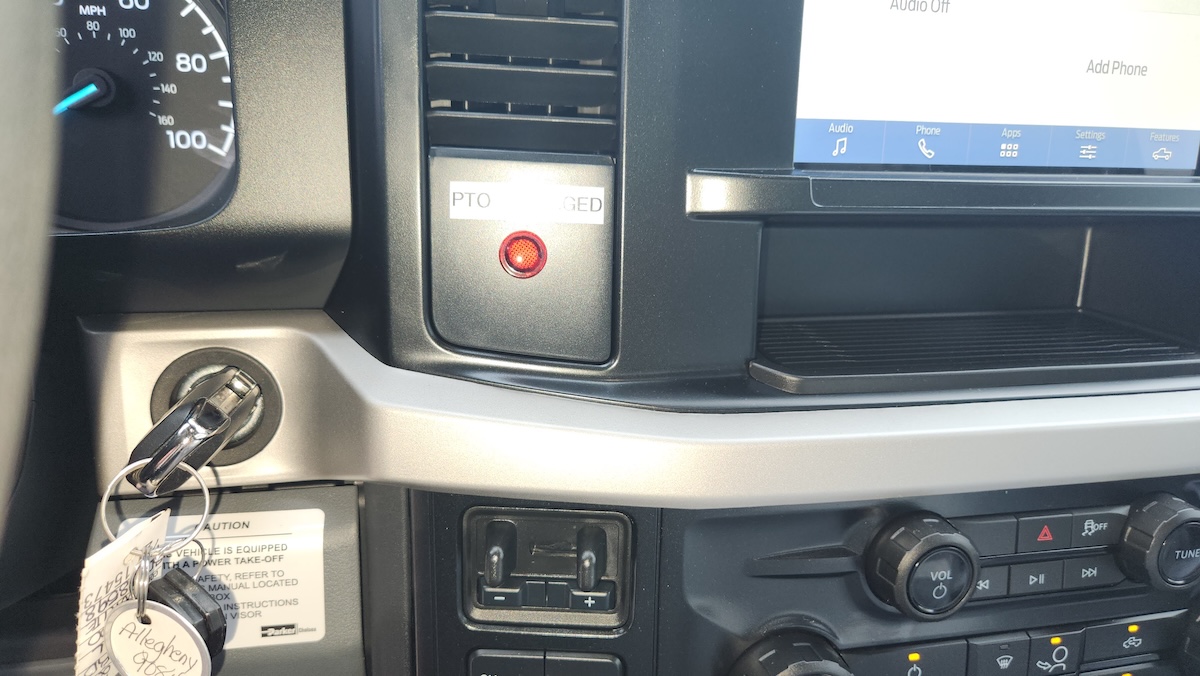

PTO (Power Take-Off) & pump — Chelsea, for Ford F-450/550/600 diesel, 10.5–18.1 GPM, single pump (installed)

Accessories

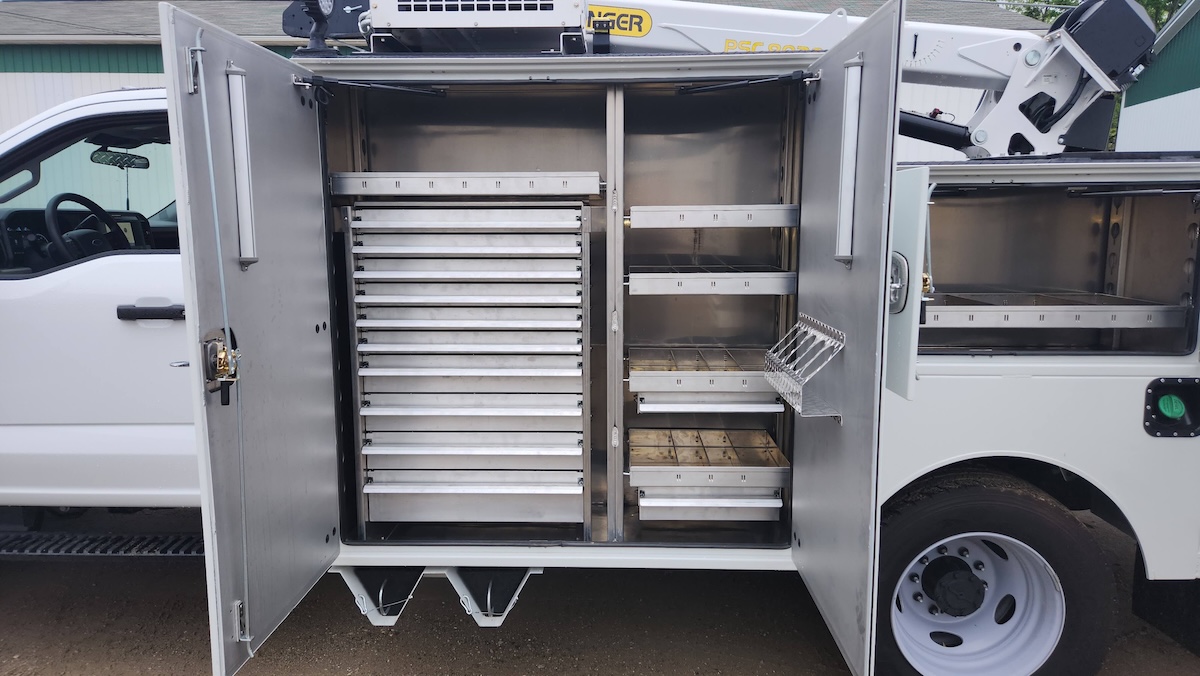

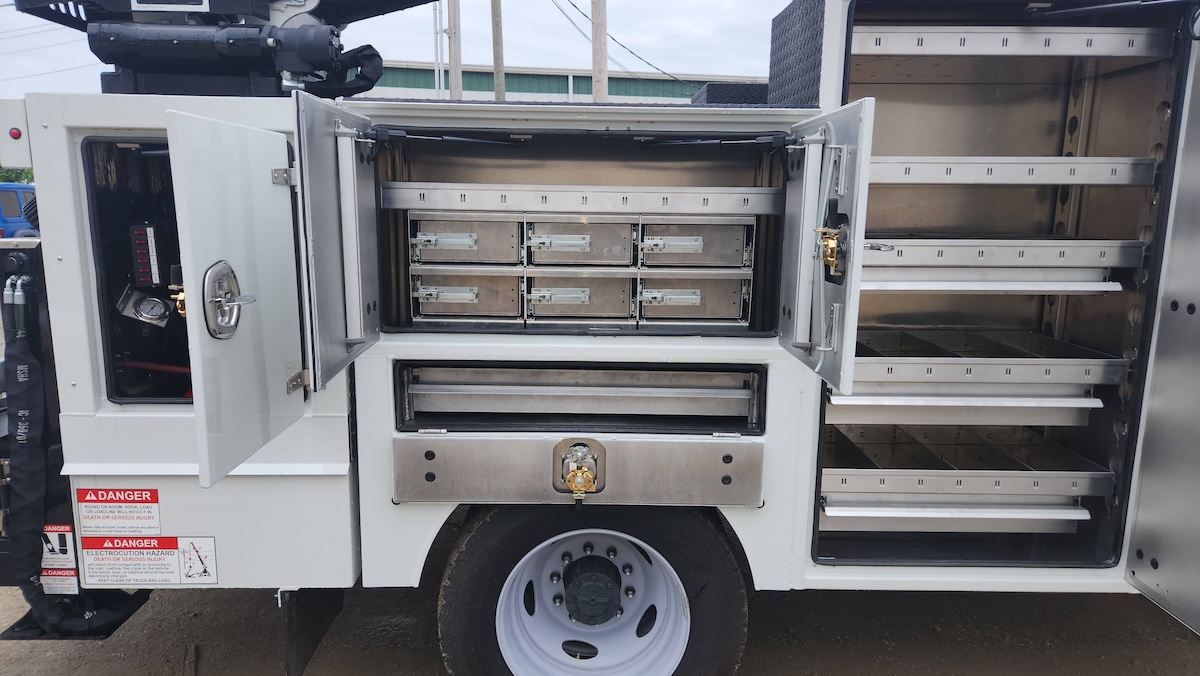

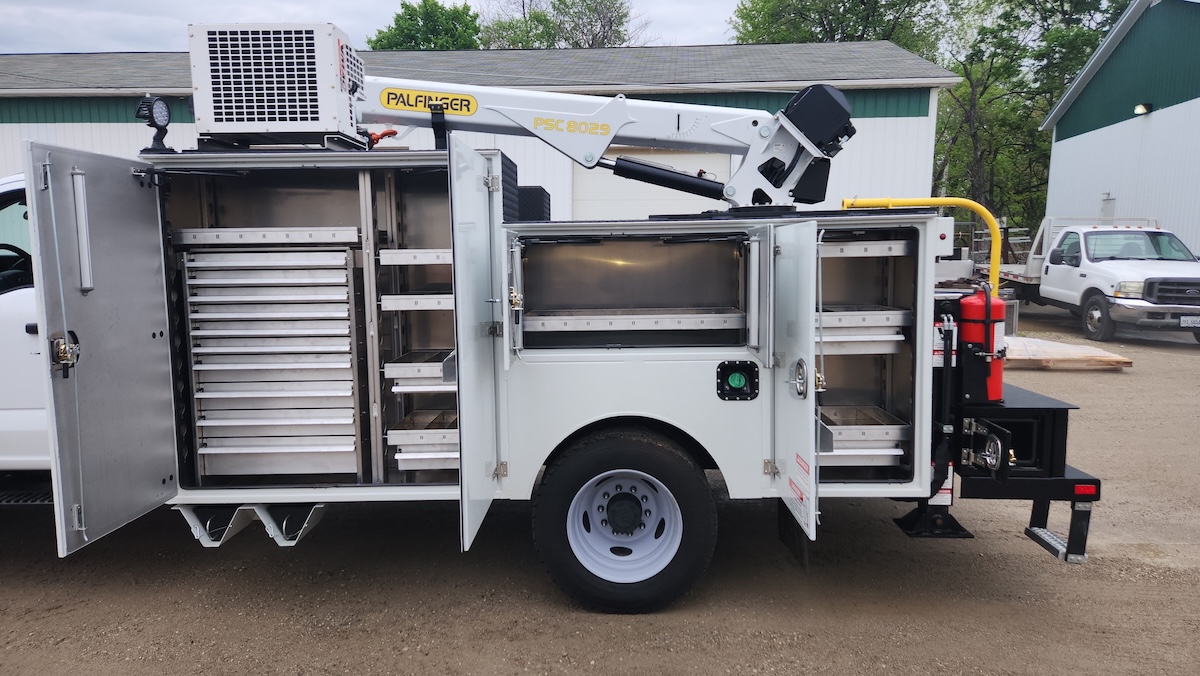

Drawer System

Roller drawer assembly, 1-7,3-5,6-3, for 36″W x 22″D cabinet
11-gauge aluminum drawers, 8-gauge aluminum shell, full-length one-motion latch, 500 lb slides
Over-wheel roller drawer, 34″W x 5″H x 16″D, with dividers

Shelving

Roller Shelf – 5″ (qty 7) — includes 1 standard shelf and roller drawer shelf, installed
100 lb roller slides; increases shelf space up to 80%

Lighting

Interior: Cabinet light, white LED, chrome with deflector, installed (qty 10)
Exterior: LED flood light, black, swivel with switch, installed (qty 4)
LED lighting with marker lights (part of body spec)

Specialty Storage

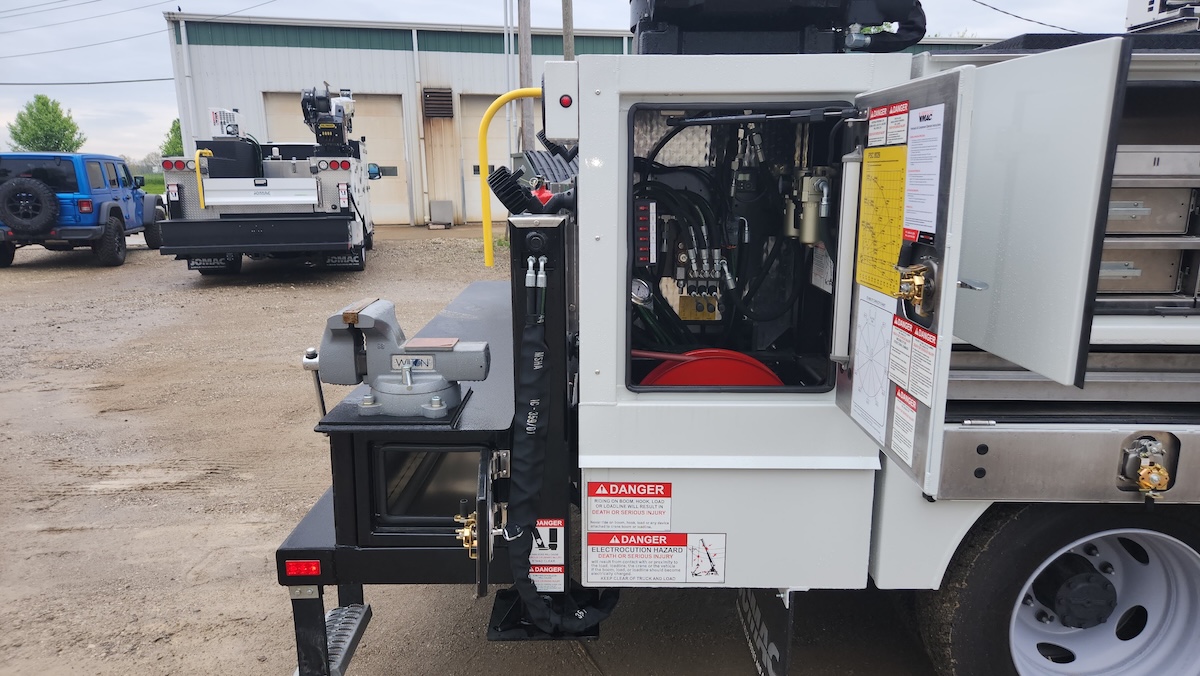

Wilton mechanics vise — 8″ jaw width, 8-1/4″ jaw opening, 4-3/4″ throat depth, installed

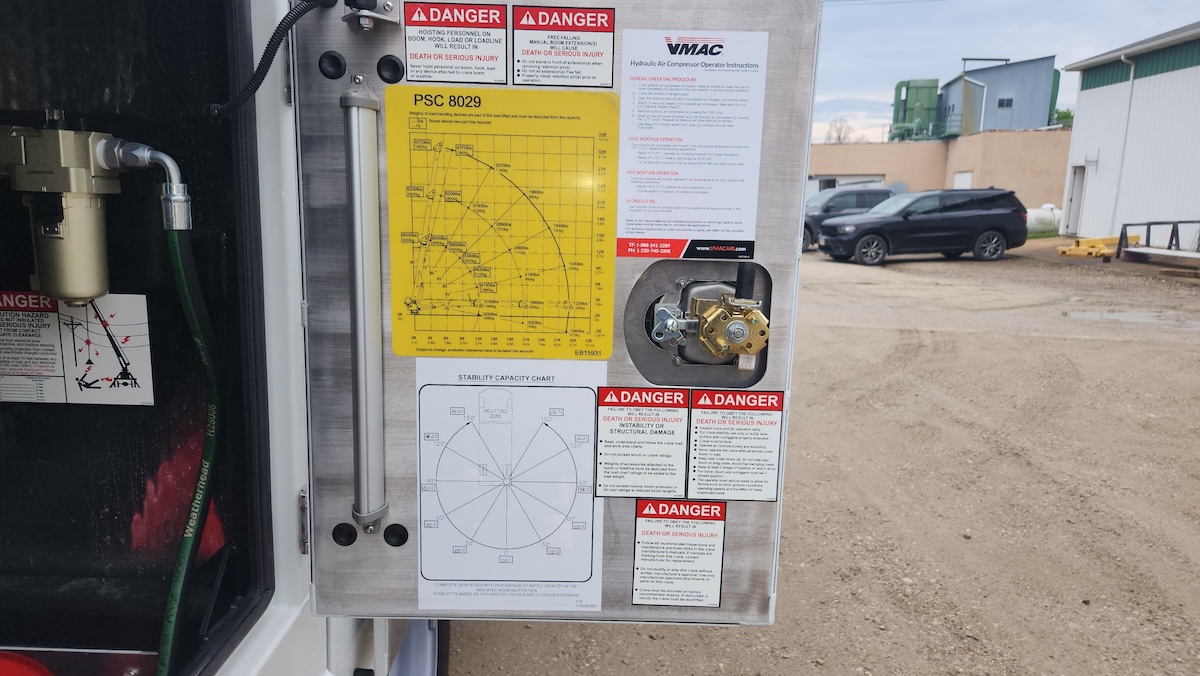

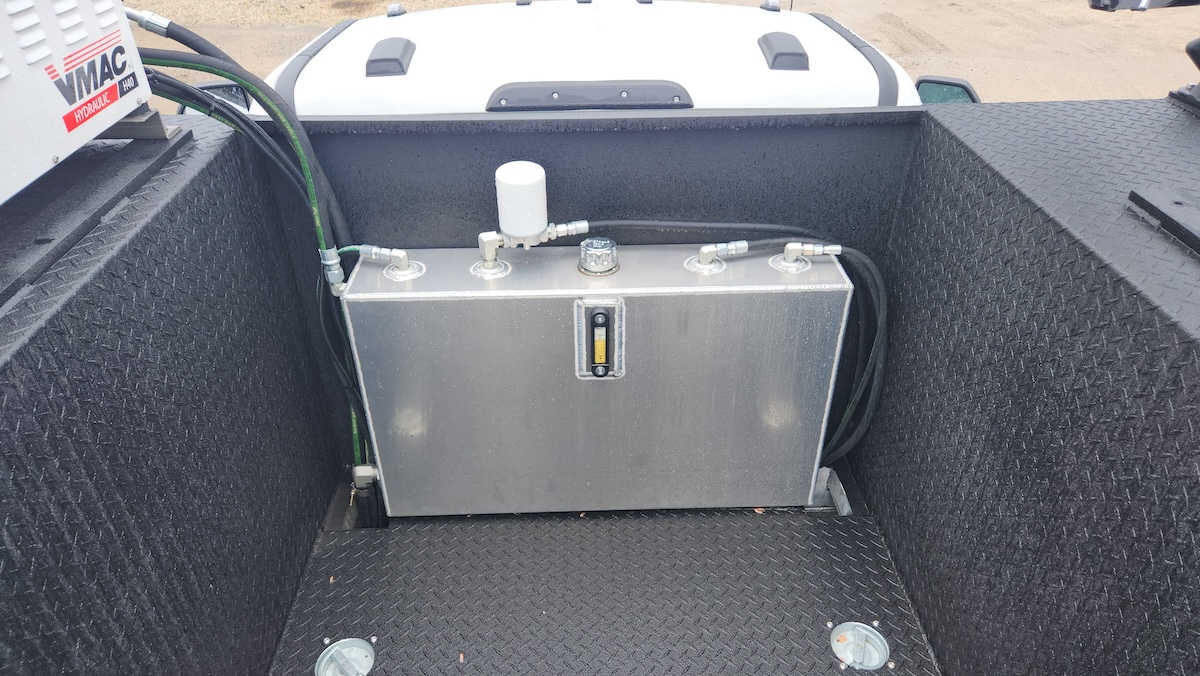

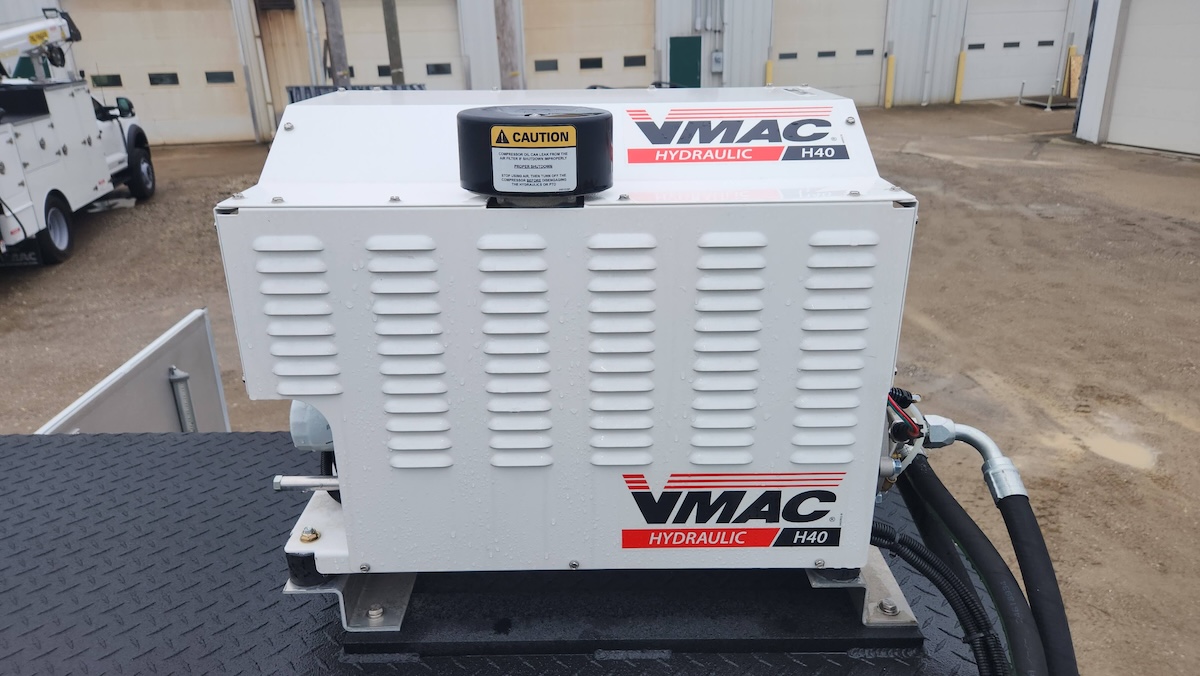

VMAC Predatair 40 CFM hydraulic-driven rotary screw air compressor, 150 PSI, installed

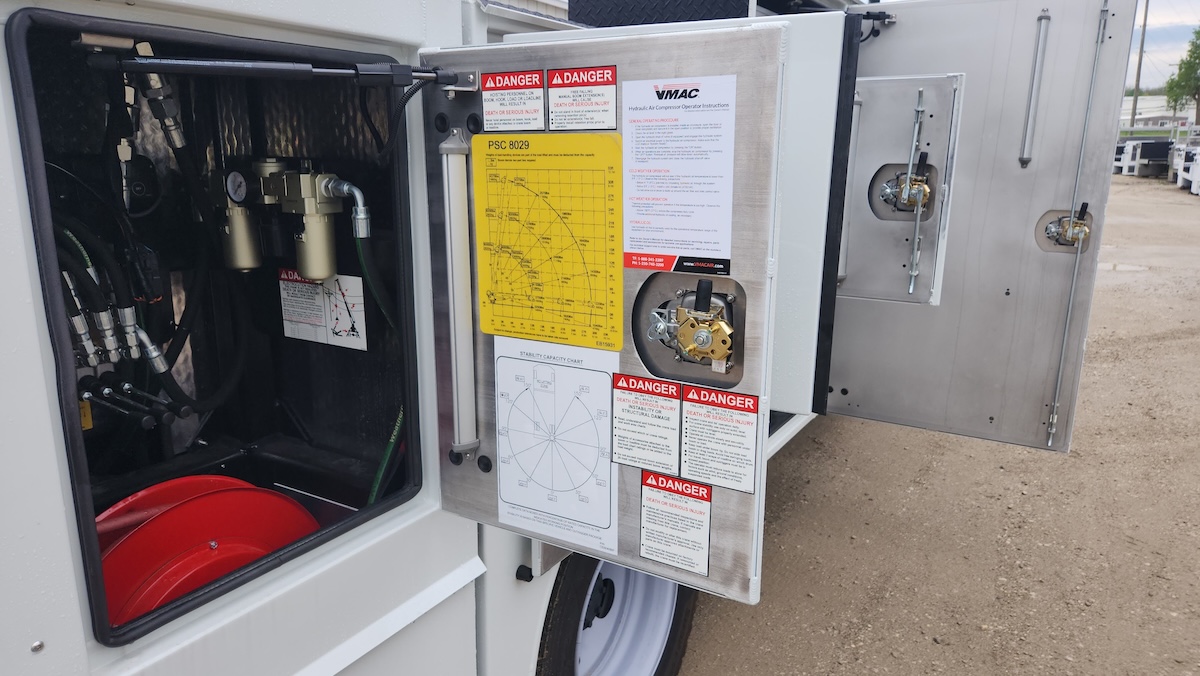

VMAC filter-regulator-lubricator (FRL), up to 70 CFM/150 PSI, installed
Oxygen & acetylene cabinet kit — stainless vents, aluminum cylinder retainer, ratchet strap, bar grate floor overlay, divider, installed

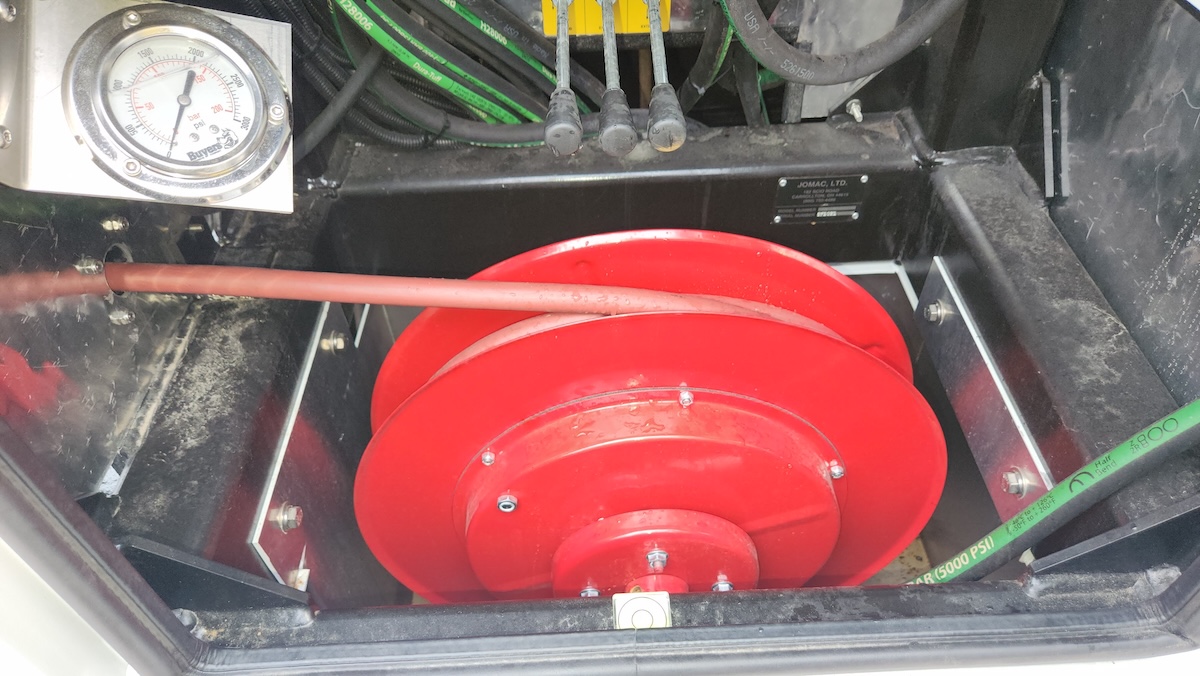

Reel, air hose, 1/2″ x 50′, installed inside cabinet
Hose kit, up to 8 GPM, single circuit, installed
Can holder, 4-can, aluminum, installed (qty 2)
Equipment mount substructure (qty 2)
